Кожух для снегоходов Yamaha MOUNTAIN MAX 800 165 (MM8N65ERL) 2024г.
8ND-K715B-00-00
Intake, Lower
8ND-K7561-00-00
. .Protector, Side 1
8ND-R1311-30-00
Duct, Intake
8JP-H5133-00-00
Tape, Reflector
8JP-RA2A1-00-00
Screw, 12
8KC-K715E-00-00
SCREEN, INTAKE DUC
8KC-K715D-00-00
SCREEN, INTAKE DUC
8KC-K715G-10-00
Duct, Intake 2
8KC-K715F-10-00
Duct, Intake 1
8ND-K715C-10-00
Intake, Upper
8ND-K7373-10-00
. .Protector
8ND-K715J-00-00
Vent, Front 2
8ND-K715H-00-00
Vent, Front 1
8KC-K715R-00-00
SEAL, INTAKE
8JP-RA352-00-00
Nut, Clip 10
8JP-RA441-00-00
Washer, 1/4X0.625X0.065
8KC-K715M-00-00
BEZEL, VENT 2
8KC-K715L-00-00
BEZEL, VENT 1
8JP-RA202-00-00
SCREW, TAPPING 1/4
8ND-H2380-00-00
Sensor, Pressure
8ND-RA201-00-00
Screw, Tapping
8ND-RAB14-00-00
Clamp, 12
8KC-RA202-00-00
SCREW, TAPPING 1/4
8NV-RA2A1-00-00
Screw, 12

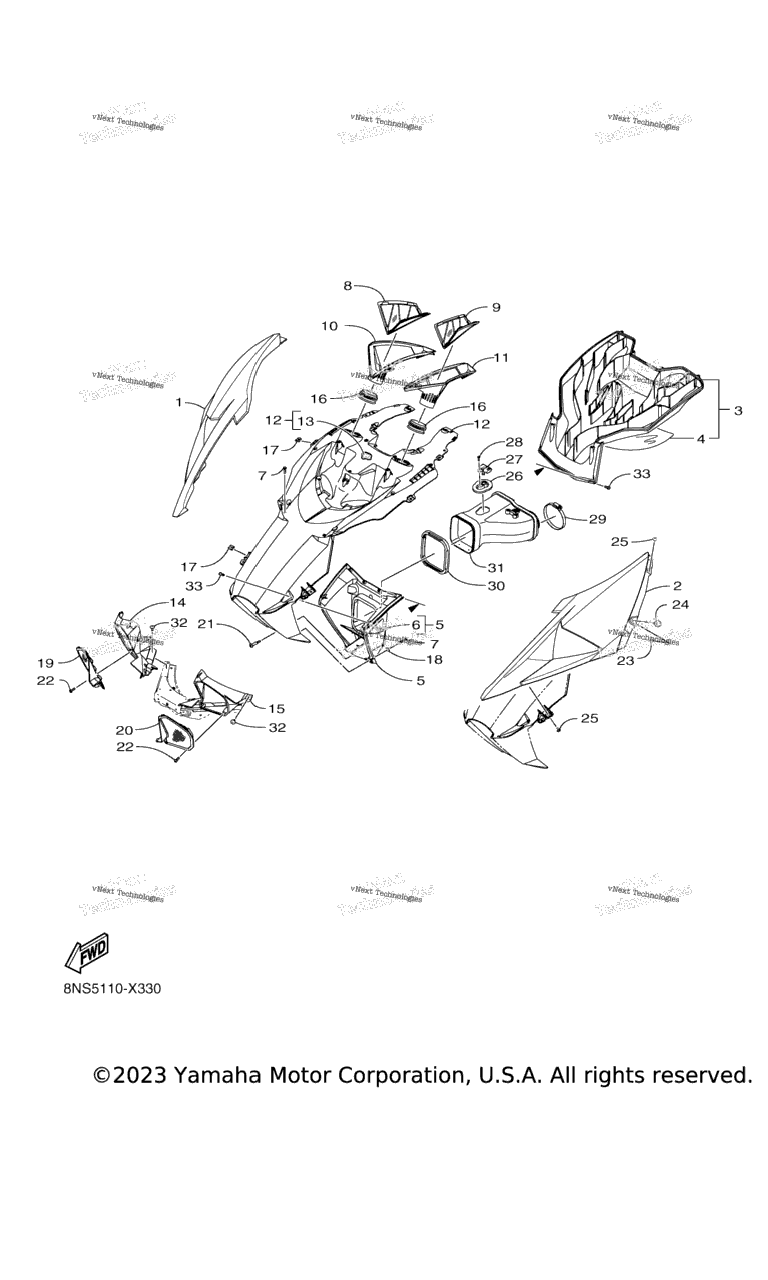

Схема узла: Кожух для снегоходов Yamaha MOUNTAIN MAX 800 165 (MM8N65ERL) 2024г.
Купить запчасти: 8NS-K7122-30-00, 8NS-K7121-30-00, 8ND-K715B-00-00, 8ND-K7561-00-00, 8ND-R1311-30-00, 8JP-H5133-00-00, 8JP-RA2A1-00-00, 8KC-K715E-00-00, 8KC-K715D-00-00, 8KC-K715G-10-00, 8KC-K715F-10-00, 8ND-K715C-10-00, 8ND-K7373-10-00, 8ND-K715J-00-00, 8ND-K715H-00-00, 8KC-K715R-00-00, 8JP-RA352-00-00, 8JP-RA441-00-00, 8KC-K715M-00-00, 8KC-K715L-00-00, 8ND-RA211-00-00, 8KC-RA238-00-00, 8JP-RA345-00-00, 8JP-RAK02-00-00, 8JP-RA202-00-00, 8ND-R1325-00-00, 8ND-H2380-00-00, 8ND-RA201-00-00, 8ND-RAB14-00-00, 8ND-E4454-00-00, 8ND-E4437-00-00, 8KC-RA202-00-00, 8NV-RA2A1-00-00.
