Привод гусеницы 2 для снегоходов Yamaha MOUNTAIN MAX 800 154 (MM8N54RL) 2024г.
8NS-G754A-00-00
Chain Case Assy
8JP-RAE03-00-00
Seal, Oil 50X65X8
8JP-RAG05-00-00
Bearing, 6009
8JP-RAH05-00-00
Circlip, Eh-75
8JP-RAE01-00-00
Seal, Oil 35X47X7
8JP-RAG04-10-00
Bearing, 2206K
8ND-RAH03-00-00
. .Circlip, 1
8ND-RA434-00-00
Washer, 3 UN
8JP-RAC04-00-00
Circlip, 5
8NS-RAC03-00-00
Circlip, 4
8NS-E769A-00-00
Drive Sprocket Assy
8NS-G7587-00-00
Sprocket, Chain Driven
8NS-RAM01-00-00
Chain, Bwa
8JP-RAC03-00-00
Circlip, 4
8ND-G7610-00-00
Chain Tensioner Assy
8JP-RAD12-00-00
Spring, 1
8ND-G7611-00-00
Tensioner
8JM-RA322-00-00
Nut, Flange M6-1.0
8JP-RA266-00-00
Screw, M6X1.0X30
8JP-RA283-00-00
Screw, Tapping M6X2.0X24
8NS-G754B-00-00
Housing Cap Assy
8MT-G7558-00-00
Ring, Housing
8JP-E5361-00-00
Gauge, Level
8JP-H5985-00-00
Sensor, Speed
8MT-RAF04-00-00
O-Ring, 2
8MT-RA247-00-00
Screw, M5X0.8X35
8JP-RAF04-00-00
O-Ring, 2

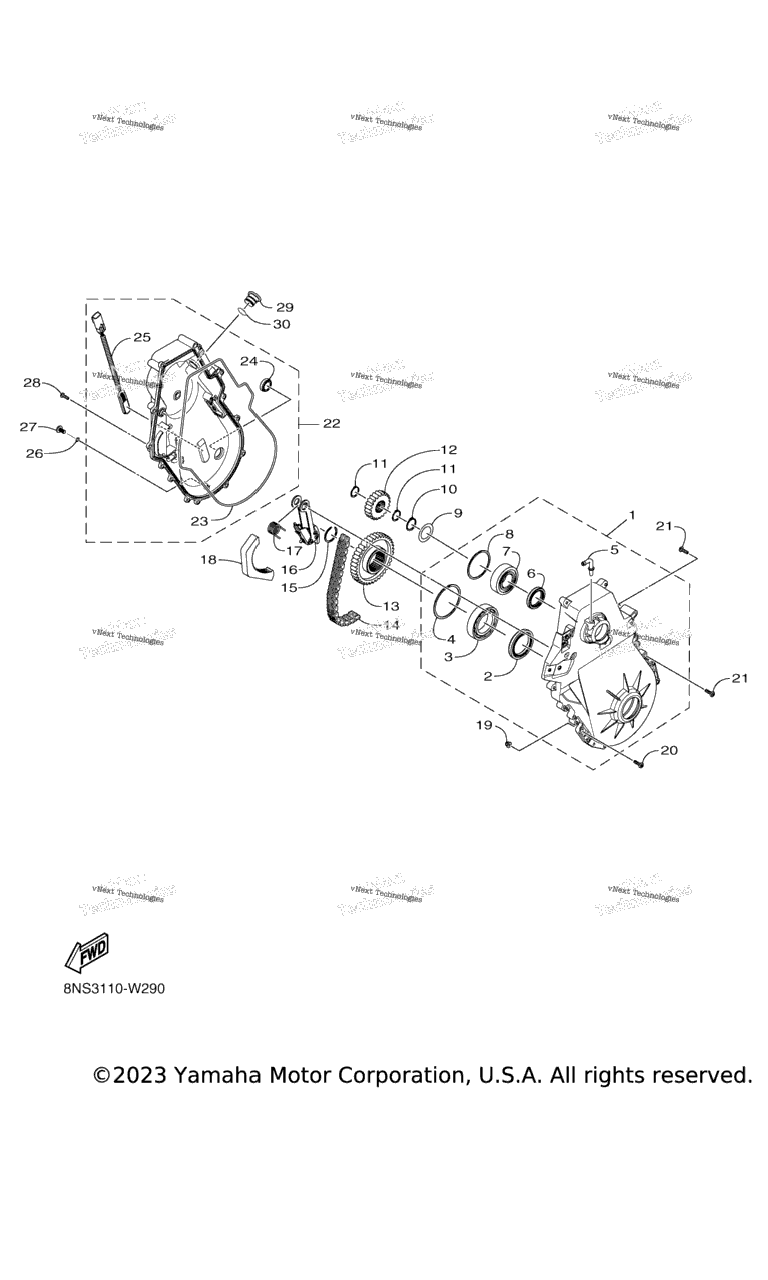

Схема узла: Привод гусеницы 2 для снегоходов Yamaha MOUNTAIN MAX 800 154 (MM8N54RL) 2024г.
Купить запчасти: 8NS-G754A-00-00, 8JP-RAE03-00-00, 8JP-RAG05-00-00, 8JP-RAH05-00-00, 8JP-G7586-00-00, 8JP-RAE01-00-00, 8JP-RAG04-10-00, 8ND-RAH03-00-00, 8ND-RA434-00-00, 8JP-RAC04-00-00, 8NS-RAC03-00-00, 8NS-E769A-00-00, 8NS-G7587-00-00, 8NS-RAM01-00-00, 8JP-RAC03-00-00, 8ND-G7610-00-00, 8JP-RAD12-00-00, 8ND-G7611-00-00, 8JM-RA322-00-00, 8JP-RA266-00-00, 8JP-RA283-00-00, 8NS-G754B-00-00, 8MT-G7558-00-00, 8JP-E5361-00-00, 8JP-H5985-00-00, 8MT-RAF04-00-00, 8MT-RA247-00-00, 8KG-RA229-00-00, 8NV-G7575-00-00, 8JP-RAF04-00-00.
