Капот для снегоходов Yamaha MOUNTAIN MAX 800 154 (MM8N54RL) 2024г.
8NT-K8140-00-00
Shell Side Panel Assy 2
8ND-K7276-00-00
. .Damper, Noise 16
8NS-K7275-00-00
. .Damper, Noise 15
8ND-K7555-00-00
Protector 5
8JM-RA411-00-00
Шайба (0.194)
8ND-G1138-00-00
Seal, Ext. 1
8ND-K7731-00-00
. .Shield 1 IN 1
8ND-K7557-00-00
. . ..Protector 7 IN 1
8ND-K7551-00-00
Protector 1
8ND-K7155-00-00
Rivet 1 UN
8NT-K8130-00-00
Shell Side Panel Assy 1
8NS-K7272-00-00
. .Damper, Noise 12
8KC-K7271-00-00
DAMPER, NOISE 11
8KC-K7273-00-00
DAMPER, NOISE 13
8JP-RA350-00-00
Nut, Clip 1/4
8JP-RA352-00-00
Nut, Clip 10
8KC-K7153-00-00
PLATE, BACK UP 1
8JP-RA523-00-00
Rivet, 14
8NV-F199H-00-00
Shield, Heat
8ND-F199H-02-00
Shield, Heat
8KC-RA202-00-00
SCREW, TAPPING 1/4
8NV-K7373-00-00
Protector
8NS-F1979-00-00
Brkt., Fr. Hood
8JP-RA202-00-00
SCREW, TAPPING 1/4
8ND-K7552-00-00
Protector 2
8LJ-RA529-00-00
Rivet, 17
8NV-RA346-00-00
.Nut, Spring

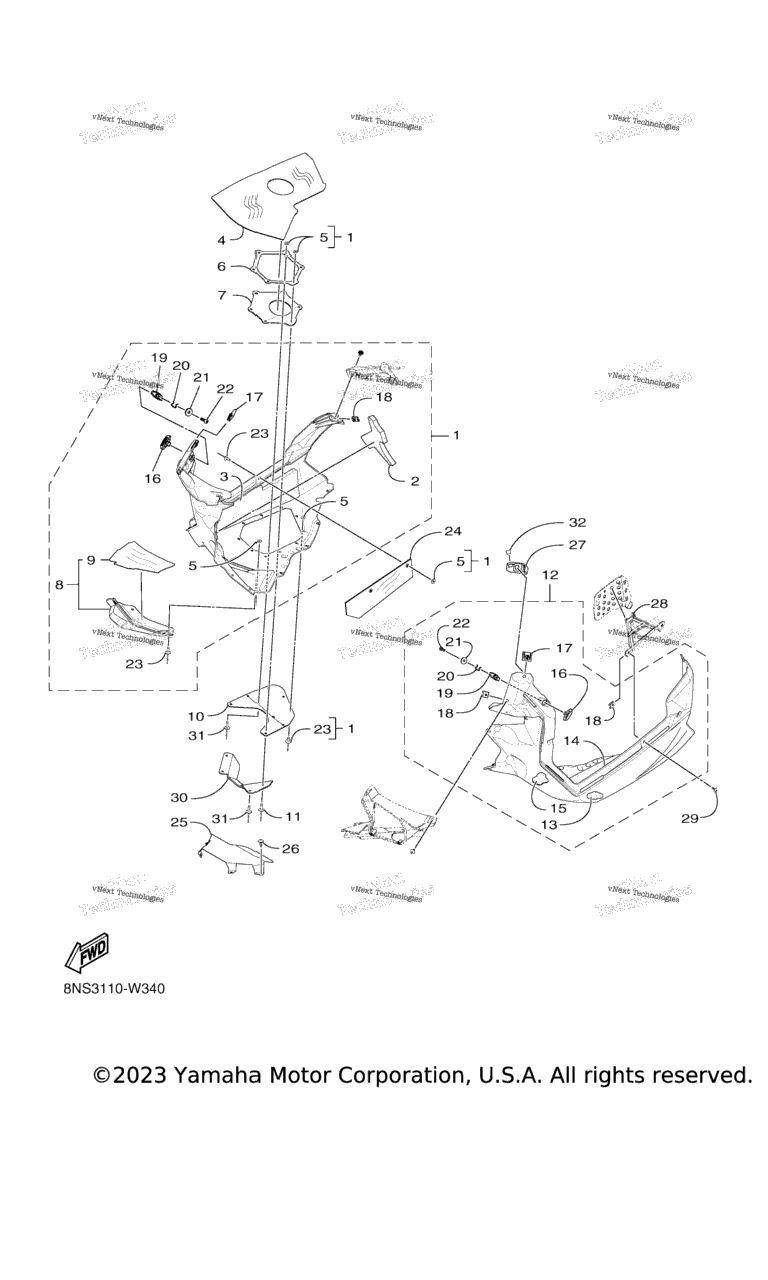

Схема узла: Капот для снегоходов Yamaha MOUNTAIN MAX 800 154 (MM8N54RL) 2024г.
