Задние разборные амортизаторы для снегоходов Bombardier SKI-DOO MX Z 600 HO SDI 2004г.

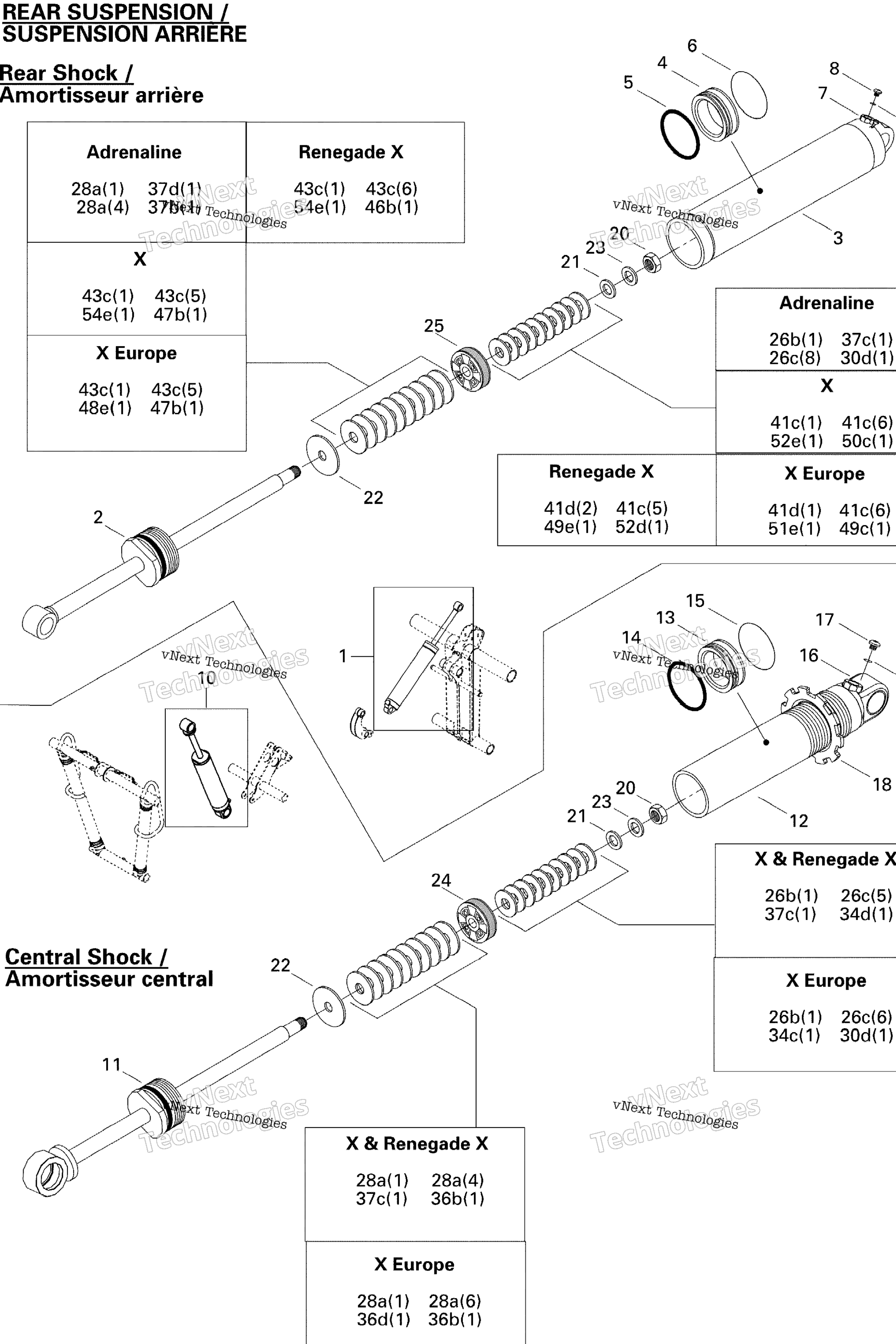

Схема узла Задние Разборные Амортизаторы

Под заказ

503189008

Piston flott. *piston-flotting

Joint torique *o ring

PISTON COMP. *PISTON-COMP.

AMORT.CENTRAL *SHOCK-CENTER

Под заказ

503190445

AMORT.CENTRAL *SHOCK-CENTER

Под заказ

503190382

SALE AMORT. ARR. *SHOCK-REAR

Под заказ

503190449

AMORT. ARR. *SHOCK-REAR

Под заказ

503190446

AMORT. ARR. *SHOCK-REAR

Под заказ

503190448

AMORT.CENTRAL *SHOCK-CENTER

Под заказ

503190649

AMORT. ARR. *REAR SHOCK

Piston libre *piston-free

Под заказ

414888312

Joint torique *o-ring

Под заказ

503189006

Ring piston *ring-piston

Joint torique *o ring

Под заказ

503190313

AMORT.CENTRAL *SHOCK-CENTER

Под заказ

503190663

AMORT.CENTRAL *CENTER SHOCK

Piston libre *piston-free

Под заказ

414888312

Joint torique *o-ring

Collet ressort *collar-spring

Под заказ

505070400

Joint torique *o ring

Под заказ

N/A-BRPSK500C20NU

Nut Summit 700. Summit 800.

Под заказ

N/A-BRPSK500C21VA

Valve Stopper MX Z X 440. .

Под заказ

N/A-BRPSK500C22VA

Valve Stopper MX Z X 440. .

Piston (2 x 0.3-1) (c36)

Под заказ

415128848

Piston (2 x 0.3-1) (c36)

26a

Под заказ

415039100

Lame soupape *leaf-valve

26b

Под заказ

414888318

Lame soupape *leaf-valve

26c

Под заказ

414888319

Lame soupape *leaf-valve

26d

Под заказ

N/A-BRPSK500C26DLE

Leaf Valve Ø18 x 0.114 (C36)

Leaf Valve Ø17 x 0.254 (C36)

27d

Под заказ

N/A-BRPSK500C27DLE

Leaf Valve Ø17 x 0.114 (C36)

28a

Под заказ

415039000

Lame soupape *leaf-valve

Lame soupape *leaf-valve

28d

Под заказ

N/A-BRPSK500C28DLE

Leaf Valve Ø28 x 0.114 (C36)

29d

Под заказ

N/A-BRPSK500C29DLE

Leaf Valve Ø20 x 0.305

29a

Под заказ

N/A-BRPSK500C29ALE

Leaf Valve Ø18 x 0.254 (C36)

29b

Под заказ

N/A-BRPSK500C29BLE

Leaf Valve Ø21 x 0.203 (C36)

29c

Под заказ

N/A-BRPSK500C29CLE

Leaf Valve Ø21 x 0.152 (C36)

30b

Под заказ

414888324

Lame soupape *leaf-valve

Leaf Valve Ø17 x 0.203

30d

Под заказ

N/A-BRPSK500C30DLE

Leaf Valve Ø14 x 0.114 (C36)

Leaf Valve Ø13 x 0.254 (C36)

31b

Под заказ

N/A-BRPSK500C31BLE

Leaf Valve Ø13 x 0.203 (C36)

31c

Под заказ

N/A-BRPSK500C31CLE

Leaf Valve Ø13 x 0.152 (C36)

32b

Под заказ

414888326

Lame soupape *leaf-valve

32c

Под заказ

414888327

Lame soupape *leaf-valve

Leaf Valve Ø21 x 0.254 (C36)

33a

Под заказ

N/A-BRPSK500C33ALE

Leaf Valve Ø20 x 0.254 (C36)

33b

Под заказ

N/A-BRPSK500C33BLE

Leaf Valve Ø14 x 0.203 (C36)

33c

Под заказ

N/A-BRPSK500C33CLE

Leaf Valve Ø14 x 0.152 (C36)

33d

Под заказ

N/A-BRPSK500C33DLE

Leaf Valve Ø14 x 0.114 (C36)

34b

Под заказ

414888329

Lame soupape *leaf-valve

34c

Под заказ

414888330

Lame soupape *leaf-valve

34a

Под заказ

N/A-BRPSK500C34ALE

Leaf Valve Ø19 x 0.254 (C36)

34d

Под заказ

N/A-BRPSK500C34DLE

Leaf Valve Ø19 x 0.114 (C36)

35a

Под заказ

N/A-BRPSK500C35ALE

Leaf Valve Ø18 x 0.254 (C36)

35d

Под заказ

N/A-BRPSK500C35DLE

Leaf Valve Ø18 x 0.114 (C36)

35b

Под заказ

N/A-BRPSK500C35BLE

Leaf Valve Ø24 x 0,203 (C36)

35c

Под заказ

N/A-BRPSK500C35CLE

Leaf Valve Ø24 x 0,152 (C36)

36a

Под заказ

414888331

Lame soupape *leaf-valve

Lame soupape *leaf-valve

Lame soupape *leaf-valve

Lame soupape *leaf-valve

38a

Под заказ

N/A-BRPSK500C38ALE

Leaf Valve Ø19 x 0.254 (C36)

38b

Под заказ

N/A-BRPSK500C38BLE

Leaf Valve Ø19 x 0.203 (C36)

38c

Под заказ

N/A-BRPSK500C38CLE

Leaf Valve Ø19 x 0.152 (C36)

38d

Под заказ

N/A-BRPSK500C38DLE

Leaf Valve Ø19 x 0.114 (C36)

39a

Под заказ

N/A-BRPSK500C39ALE

Leaf Valve Ø14 x 0.254 (C36)

39b

Под заказ

N/A-BRPSK500C39BLE

Leaf Valve Ø14 x 0.203 (C36)

39c

Под заказ

N/A-BRPSK500C39CLE

Leaf Valve Ø14 x 0.152 (C36)

39d

Под заказ

N/A-BRPSK500C39DLE

Leaf Valve Ø14 x 0.114 (C36)

40b

Под заказ

414888338

Lame soupape *leaf-valve

LAME SOUPAPE *LEAF-VALVE

40a

Под заказ

503189538

Lame soupape *leaf-valve 12xt0.254

41b

Под заказ

503189041

Rondelle piston*washer-piston

41c

Под заказ

503189040

Rondelle piston*washer-piston

41d

Под заказ

503189039

Rondelle piston*washer-piston

41a

Под заказ

N/A-BRPSK500C41ALE

Leaf Valve Ø17 x 0,254 (C36)

41e

Под заказ

N/A-BRPSK500C41ELE

Leaf Valve Ø40 x 0,114 (C46)

42a

Под заказ

N/A-BRPSK500C42ALE

Leaf Valve Ø38 x 0,305 (C46)

42b

Под заказ

N/A-BRPSK500C42BLE

Leaf Valve Ø38 x 0,254 (C46)

42c

Под заказ

N/A-BRPSK500C42CLE

Leaf Valve Ø38 x 0,203 (C46)

42d

Под заказ

N/A-BRPSK500C42DLE

Leaf Valve Ø38 x 0,152 (C46)

42e

Под заказ

N/A-BRPSK500C42ELE

Leaf Valve Ø38 x 0,114 (C46)

43b

Под заказ

503189038

Rondelle piston*washer-piston

43c

Под заказ

503189037

Rondelle piston*washer-piston

43d

Под заказ

503189036

Rondelle piston*washer-piston

43a

Под заказ

N/A-BRPSK500C43ALE

Leaf Valve Ø14 x 0.254 (C36)

43e

Под заказ

N/A-BRPSK500C43ELE

Leaf Valve Ø36 x 0,114 (C46)

44a

Под заказ

N/A-BRPSK500C44ALE

Leaf Valve Ø13 x 0.254 (C36)

44b

Под заказ

N/A-BRPSK500C44BLE

Leaf Valve Ø13 x 0.203 (C36)

44c

Под заказ

N/A-BRPSK500C44CLE

Leaf Valve Ø13 x 0.152 (C36)

44d

Под заказ

N/A-BRPSK500C44DLE

Leaf Valve Ø13 x 0.114 (C36)

44e

Под заказ

N/A-BRPSK500C44ELE

Leaf Valve Ø34 x 0,114 (C46)

45a

Под заказ

503189035

Rondelle piston*washer-piston

45b

Под заказ

503189034

Rondelle piston*washer-piston

45c

Под заказ

503189033

Rondelle piston*washer-piston

45d

Под заказ

503189032

Rondelle piston*washer-piston

45e

Под заказ

503189031

Rondelle piston*washer-piston

46a

Под заказ

503189030

Rondelle piston*washer-piston

46b

Под заказ

503189029

Rondelle piston*washer-piston

46c

Под заказ

503189028

Rondelle piston*washer-piston

46d

Под заказ

503189027

Rondelle piston*washer-piston

46e

Под заказ

503189026

Rondelle piston*washer-piston

47a

Под заказ

503189025

Rondelle piston*washer-piston

47b

Под заказ

503189024

Rondelle piston*washer-piston

47c

Под заказ

503189023

Rondelle piston*washer-piston

47d

Под заказ

503189022

Rondelle piston*washer-piston

47e

Под заказ

503189021

Rondelle piston*washer-piston

48a

Под заказ

503189020

Rondelle piston*washer-piston

48b

Под заказ

503189019

Rondelle piston*washer-piston

48c

Под заказ

503189018

Rondelle piston*washer-piston

48d

Под заказ

503189017

Rondelle piston*washer-piston

48e

Под заказ

503189016

Rondelle piston*washer-piston

49d

Под заказ

503189012

Rondelle piston*washer-piston

Rondelle piston*washer-piston

49b

Под заказ

503189014

Rondelle piston*washer-piston

49c

Под заказ

503189013

Rondelle piston*washer-piston

49e

Под заказ

503189011

Rondelle piston*washer-piston

50a

Под заказ

N/A-BRPSK500C50ALE

Leaf Valve Ø34 x 0.305 (C46)

50b

Под заказ

N/A-BRPSK500C50BLE

Leaf Valve Ø34 x 0.254 (C46)

50c

Под заказ

N/A-BRPSK500C50CLE

Leaf Valve Ø34 x 0.203 (C46)

50d

Под заказ

N/A-BRPSK500C50DLE

Leaf Valve Ø34 x 0.152 (C46)

50e

Под заказ

N/A-BRPSK500C50ELE

Leaf Valve Ø34 x 0.114 (C46)

51a

Под заказ

N/A-BRPSK500C51ALE

Leaf Valve Ø20 x 0,254 (C36)

51b

Под заказ

N/A-BRPSK500C51BLE

Leaf Valve Ø19 x 0,254 (C46)

51c

Под заказ

N/A-BRPSK500C51CLE

Leaf Valve Ø19 x 0,203 (C46)

51d

Под заказ

N/A-BRPSK500C51DLE

Leaf Valve Ø19 x 0,152 (C46)

51e

Под заказ

N/A-BRPSK500C51ELE

Leaf Valve Ø19 x 0,114 (C46)

52a

Под заказ

N/A-BRPSK500C52ALE

Leaf Valve Ø19 x 0,254 (C36)

52b

Под заказ

N/A-BRPSK500C52BLE

Leaf Valve Ø19 x 0,203 (C36)

52c

Под заказ

N/A-BRPSK500C52CLE

Leaf Valve Ø19 x 0,152 (C36)

52d

Под заказ

N/A-BRPSK500C52DLE

Leaf Valve Ø19 x 0,114 (C36)

52e

Под заказ

N/A-BRPSK500C52ELE

Leaf Valve Ø18 x 0,114 (C46)

53a

Под заказ

N/A-BRPSK500C53ALE

Leaf Valve Ø18 x 0,254 (C36)

53d

Под заказ

N/A-BRPSK500C53DLE

Leaf Valve Ø18 x 0,114 (C36)

53b

Под заказ

N/A-BRPSK500C53BLE

Leaf Valve Ø17 x 0,254 (C46)

53c

Под заказ

N/A-BRPSK500C53CLE

Leaf Valve Ø17 x 0,203 (C46)

53e

Под заказ

N/A-BRPSK500C53ELE

Leaf Valve Ø17 x 0,114 (C46)

54a

Под заказ

N/A-BRPSK500C54ALE

Leaf Valve Ø17 x 0,254 (C36)

54b

Под заказ

N/A-BRPSK500C54BLE

Leaf Valve Ø17 x 0,203 (C36)

54c

Под заказ

N/A-BRPSK500C54CLE

Leaf Valve Ø17 x 0,152 (C36)

54d

Под заказ

N/A-BRPSK500C54DLE

Leaf Valve Ø17 x 0,114 (C36)

54e

Под заказ

N/A-BRPSK500C54ELE

Leaf Valve Ø16 x 0,114 (C46)

Под заказ

293600035

HUILE AMORTIS. *OIL-SHOCK

Схема узла: Задние разборные амортизаторы для снегоходов Bombardier SKI-DOO MX Z 600 HO SDI 2004г.
