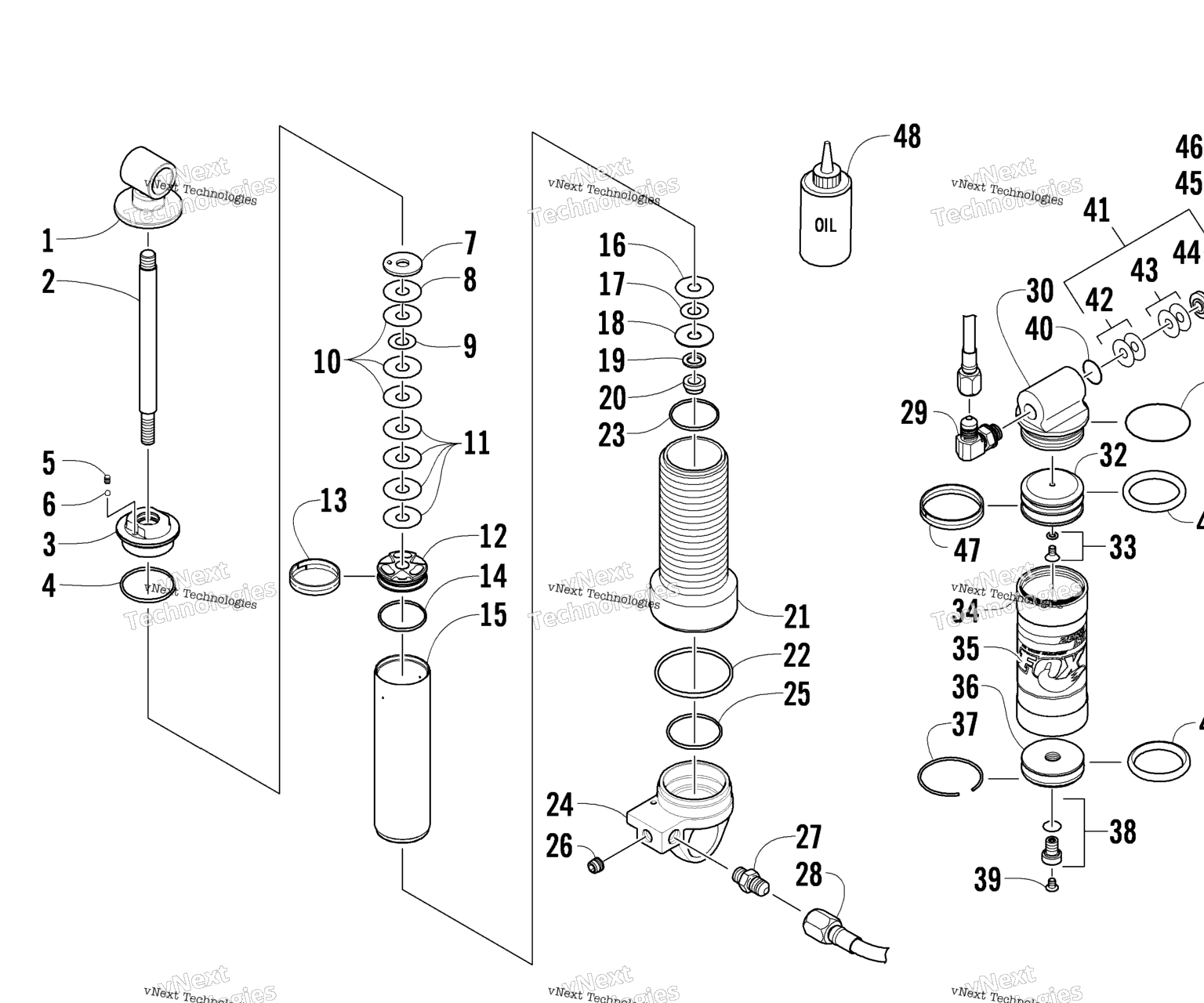

Задний амортизатор переднего рычага подвески для снегоходов Arctic Cat AC 600 SNO PRO BLACK (S2008ACDPRUSB) 2008г.
Под заказ
3604-166
Shock Absorber Rebuild Kit
17 144 ₽
18 858 ₽
Под заказ
3604-177
Kit, Rebuild - Shock
23 664 ₽
26 030 ₽
Под заказ
1704-732
Complete Shock Absorber Assembly
1
Под заказ
0604-625
Eyelet, Shock
2
Под заказ
2604-529
SHAFT,.498 X 6.690 X 1.20
3
Под заказ
2604-568
Bearing - Assembly (inc. 4) Included in Shock Absorber Rebuild Kit, (p/n 3604-166) but may be purchased separately. Note: Shaft seals and scrapers can only be purchased as a bearing assembly.
4
Под заказ
1604-420
O-Ring
694 ₽
763 ₽
5
Под заказ
1603-940
Screw, Set
6
Под заказ
1604-315
Ball, Bleed
7
Под заказ
0603-540
Washer, Top Out - 1.125OD x 0.378ID x 0.093
2 527 ₽
2 780 ₽
8
Под заказ
0603-349
Valve, 1.300 x 0.008 in.
9
Под заказ
0603-333
Valve, 0.800 x 0.006 in.
10
Под заказ
0603-890
Valve, 1.300 x 0.015 in.
11
Под заказ
0603-891
Valve, 1.300 x 0.012 in.
12
Под заказ
2603-531
Piston, Damping - 1.459 Bore - No Bleed
13
Под заказ
0603-292
Strap, Piston Included in Shock Absorber Rebuild Kit, (p/n 3604-166) but may be purchased separately. Note: Shaft seals and scrapers can only be purchased as a bearing assembly.
4 730 ₽
5 203 ₽
14
Под заказ
2604-214
O-Ring
15
Под заказ
3604-422
Body, Shock
21 396 ₽
23 536 ₽
16
Под заказ
0603-343
Valve, 1.100 x 0.008 in.
17
Под заказ
0603-878
Valve, 0.700 x 0.012 in.
18
Под заказ
3604-170
Washer, Top Out
19
Под заказ
0603-389
Washer, Backup
20
Под заказ
0603-301
Nut, Cap - Fox Shock
21
Под заказ
3604-169
Sleeve, Adjuster (inc. 22-23)
22
Под заказ
0604-809
O-Ring Included in Shock Absorber Rebuild Kit, (p/n 3604-166) but may be purchased separately. Note: Shaft seals and scrapers can only be purchased as a bearing assembly.
23
Под заказ
0604-810
O-Ring Included in Shock Absorber Rebuild Kit, (p/n 3604-166) but may be purchased separately. Note: Shaft seals and scrapers can only be purchased as a bearing assembly.
694 ₽
763 ₽
24
Под заказ
2604-909
End Cap, Shock (inc. 25)
25
Под заказ
0603-438
O-Ring-End Cap
26
Под заказ
2604-207
Plug, Brass
27
Под заказ
2604-944
Fitting, Straight
28
Под заказ
2604-967
Hose, Swivel
20 223 ₽
22 245 ₽
29
Под заказ
2604-943
FITTING,ELBOW-90 DEG
5 069 ₽
5 576 ₽
30
Под заказ
2603-528
Housing, Damping Adjuster (inc. 31)
31
Под заказ
2603-504
O-Ring
32
Под заказ
2604-969
Piston, Internal Floating - Assembly
33
Под заказ
1604-316
Screw, Machine - w/O-Ring (inc. 19)
34
Под заказ
2603-515
Reservoir
20 663 ₽
22 729 ₽
35
Под заказ
3604-160
Decal, Shock - Reservoir
36
Под заказ
2603-525
End Cap, Reservoir - Assembly - Bore (inc. 37 and 43-44)
10 444 ₽
11 488 ₽
37
Под заказ
0604-992
Ring, Retaining
1 275 ₽
1 403 ₽
38
Под заказ
0703-341
Valve, Pressure - Assembly (inc. 28)
10 294 ₽
11 323 ₽
39
Под заказ
0624-097
Screw, Valve
40
Под заказ
3604-164
O-Ring Included in Reservoir Rebuild Kit (p/n 3604-177), but may be purchased separately.
41
Под заказ
3604-187
Piston, Concentric - Damping Adjuster (inc. 47-49)
42
Под заказ
3604-165
Plate, Backup
43
Под заказ
2603-501
Valve, 0.700 x 0.010 in.
44
Под заказ
0603-331
Valve, 0.700 x 0.008 in.
45
Под заказ
2603-502
O-Ring
1 265 ₽
1 392 ₽
46
Под заказ
2603-527
Cartridge, Damping Adjuster (inc. 36)
47
Под заказ
3604-177
Kit, Rebuild - Shock
23 664 ₽
26 030 ₽
48
Под заказ
5639-530
SEMI-SYN SHOCK OIL-1 QUART
Купить запчасти: 3604-166, 3604-177, 1704-732, 0604-625, 2604-529, 2604-568, 1604-420, 1603-940, 1604-315, 0603-540, 0603-349, 0603-333, 0603-890, 0603-891, 2603-531, 0603-292, 2604-214, 3604-422, 0603-343, 0603-878, 3604-170, 0603-389, 0603-301, 3604-169, 0604-809, 0604-810, 2604-909, 0603-438, 2604-207, 2604-944, 2604-967, 2604-943, 2603-528, 2603-504, 2604-969, 1604-316, 2603-515, 3604-160, 2603-525, 0604-992, 0703-341, 0624-097, 3604-164, 3604-187, 3604-165, 2603-501, 0603-331, 2603-502, 2603-527, 3604-177, 5639-530.
