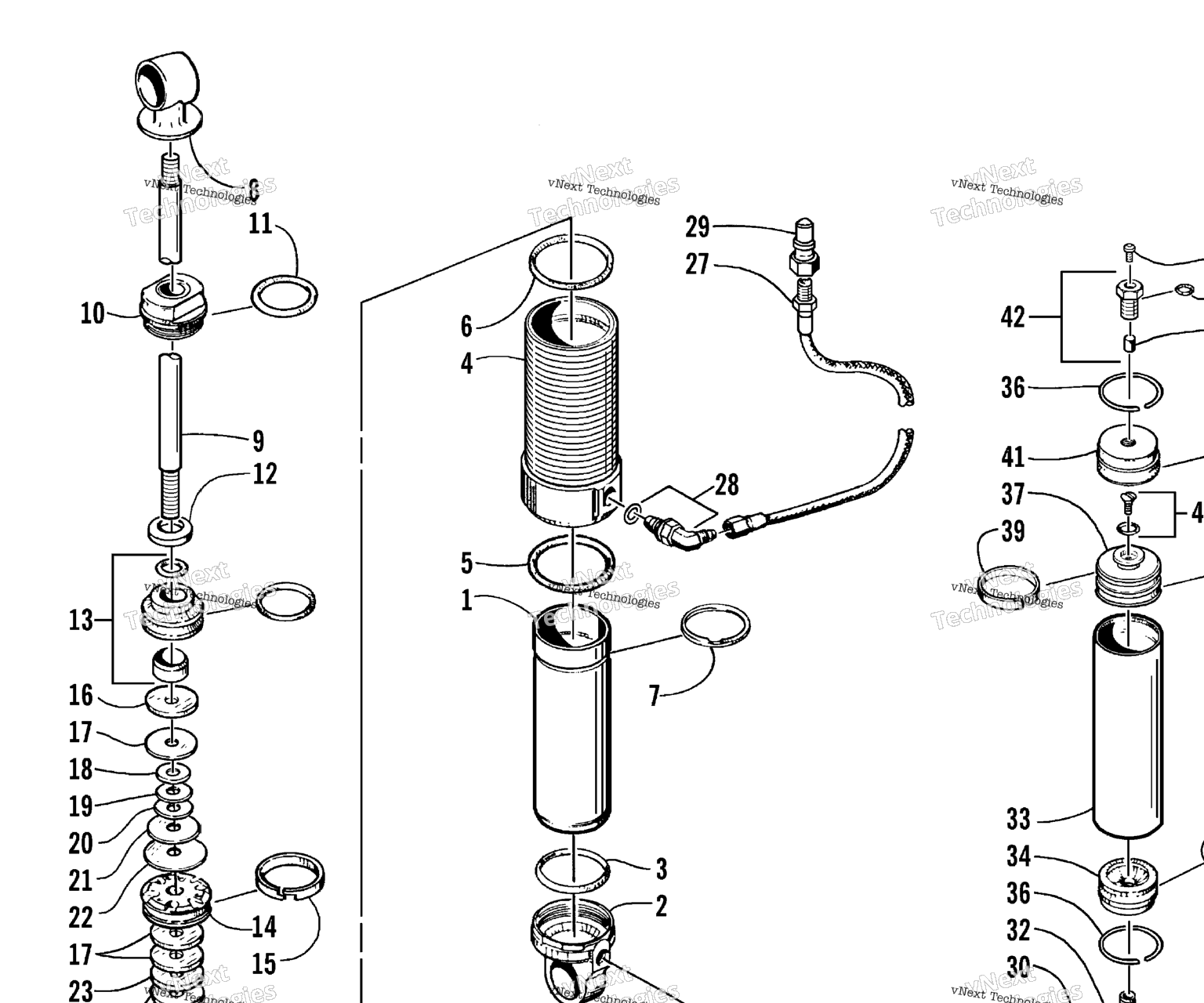

Задняя подвеска - передний амортизатор для снегоходов Arctic Cat ZR 440 SNO-PRO (99ZRE) 1999г.
0
Под заказ
1604-508
Complete Shock Absorber
1
Под заказ
1604-246
Body, Shock
20 957 ₽
23 053 ₽
2
Под заказ
0704-328
Endcap, Shock
3
Под заказ
0603-438
O-Ring-End Cap
4
Под заказ
1604-571
Sleeve, Threaded - Outer (inc. 5 and 6)
5
Под заказ
0604-809
O-Ring Included in Shock Absorber Rebuild Kit, (p/n 3604-166) but may be purchased separately. Note: Shaft seals and scrapers can only be purchased as a bearing assembly.
6
Под заказ
0604-810
O-Ring Included in Shock Absorber Rebuild Kit, (p/n 3604-166) but may be purchased separately. Note: Shaft seals and scrapers can only be purchased as a bearing assembly.
694 ₽
763 ₽
7
Под заказ
0603-911
RING,RETAINING-SPIRAL
2 323 ₽
2 555 ₽
8
Под заказ
0604-625
Eyelet, Shock
9
Под заказ
1604-247
Rod, Shock
10
Под заказ
0704-386
Endcap Assembly (inc. 4)
16 411 ₽
18 052 ₽
11
Под заказ
1604-420
O-Ring
694 ₽
763 ₽
12
Под заказ
0604-802
Spacer
4 023 ₽
4 425 ₽
13
Под заказ
1604-248
Piston, Separator - Assembly (Green)
14
Под заказ
0603-952
PISTON, 0.059 ORIFICE
15
Под заказ
0603-292
Strap, Piston Included in Shock Absorber Rebuild Kit, (p/n 3604-166) but may be purchased separately. Note: Shaft seals and scrapers can only be purchased as a bearing assembly.
4 730 ₽
5 203 ₽
16
Под заказ
0603-540
Washer, Top Out - 1.125OD x 0.378ID x 0.093
2 527 ₽
2 780 ₽
17
Под заказ
0603-347
Valve, 1.250 x 0.010 in.
694 ₽
763 ₽
18
Под заказ
0603-335
Valve, 0.800 x 0.010 in.
19
Под заказ
0603-338
Valve, 0.900 x 0.010 in.
20
Под заказ
0603-881
Valve, 1.000 x 0.012 in.
21
Под заказ
0603-882
Valve, 1.100 x 0.012 in.
648 ₽
713 ₽
22
Под заказ
0603-890
Valve, 1.300 x 0.015 in.
23
Под заказ
0603-344
Valve, 1.100 x 0.010 in.
24
Под заказ
0603-341
Valve, 1.000 x 0.010 in.
25
Под заказ
0603-389
Washer, Backup
26
Под заказ
0603-301
Nut, Cap - Fox Shock
27
Под заказ
1604-530
HOSE, Q D NIPPLE TO SHOCK, 30IN.
16 997 ₽
18 697 ₽
28
Под заказ
1604-533
ELBOW,90 DEG-7/16-20X7/16 W/FLARE (inc. one No. 19)
6 860 ₽
7 546 ₽
29
Под заказ
1604-536
Coupler, Shock
2 638 ₽
2 902 ₽
30
Под заказ
1604-532
Hose, Reservoir/Shock
31
Под заказ
1604-533
ELBOW,90 DEG-7/16-20X7/16 W/FLARE (inc. one No. 19)
6 860 ₽
7 546 ₽
32
Под заказ
0604-998
Elbow
33
Под заказ
0603-391
Body, Reservoir
34
Под заказ
0604-529
End Cap, Reservoir (inc. 35)
35
Под заказ
1604-436
O-Ring
36
Под заказ
0604-521
Retainer, Ring
873 ₽
960 ₽
37
Под заказ
2604-816
Piston, Floating Assy
38
Под заказ
0603-447
O-Ring
39
Под заказ
1604-424
Strap, Piston - Teflon
40
Под заказ
1604-316
Screw, Machine - w/O-Ring (inc. 19)
41
Под заказ
1604-319
Endcap, Reservoir
42
Под заказ
0703-341
Valve, Pressure - Assembly (inc. 28)
10 294 ₽
11 323 ₽
44
Под заказ
1604-318
O-Ring
45
Под заказ
0624-097
Screw, Valve
