Сиденье для лодок и катеров Yamaha 255XD (BPT1800GA) 2024г.
F5K-U35A5-30-00
Cushion, Fore 5
F5K-U35A5-20-00
Cushion, Fore 5
F5K-U35A6-30-00
Cushion, Fore 6
F5K-U35A6-20-00
Cushion, Fore 6
F5K-U35A1-20-00
Cushion, Fore 1
F5K-U35A1-30-00
Cushion, Fore 1
F5K-U35A2-30-00
Cushion Seat,Front Right
F5K-U35A2-20-00
Cushion Seat,Front Right
F5K-U3796-20-00
Back Rest 3
F5K-U3796-30-00
Back Rest 3
F5K-U3798-30-00
Back Rest 4
F5K-U3798-20-00
Back Rest 4
F5K-U372F-20-00
Cushion 5
F7F-U372F-10-00
Cushion 5
F5K-U35E1-20-00
Backrest, Main1
F5K-U35E1-30-00
Backrest, Main1
F5K-U371D-20-00
Cushion 1
F5K-U371D-30-00
Cushion 1
F5K-U3713-30-00
Cushion,Seat
F5K-U3713-20-00
Cushion,Seat
F3F-U3714-21-00
Bracket,Seat
F3F-U3714-31-00
Bracket,Seat
90204-10S00-00
Washer, Spring
90151-10S16-00
Screw, Countersunk
90185-10S00-00
Гайка самоконтрящаяся
F5K-U3791-30-00
Back Rest 1
F5K-U3791-20-00
Back Rest 1
F5K-U35E2-30-00
Backrest, Main2
F5K-U35E2-20-00
Backrest, Main2
F5K-U3724-20-00
Cushion Seat,Rear
F5K-U3724-30-00
Cushion Seat,Rear
F1C-U5192-00-00
Крепление кнопки
90202-06SA3-00
Washer, Plate
F5K-U35E4-30-00
Backrest, Main4
F5K-U35E4-20-00
Backrest, Main4
F5K-U379A-30-00
Back Rest 6
F5K-U379A-40-00
Back Rest 6
F5K-U379B-30-00
Back Rest 7
F5K-U379B-40-00
Back Rest 7
90204-14S00-00
Шайба пружинная
F5K-U828B-30-00
Cushion 1
F5K-U828B-20-00
Cushion 1
F5K-U828C-30-00
Cushion 2
F5K-U828C-20-00
Cushion 2
90161-04S12-00
Screw, Tapping
F5K-U35C5-20-00
Cushion, Main 5
F5K-U35C5-30-00
Cushion, Main 5
F5K-U35C6-20-00
Cushion, Main 6
F5K-U35C6-30-00
Cushion, Main 6

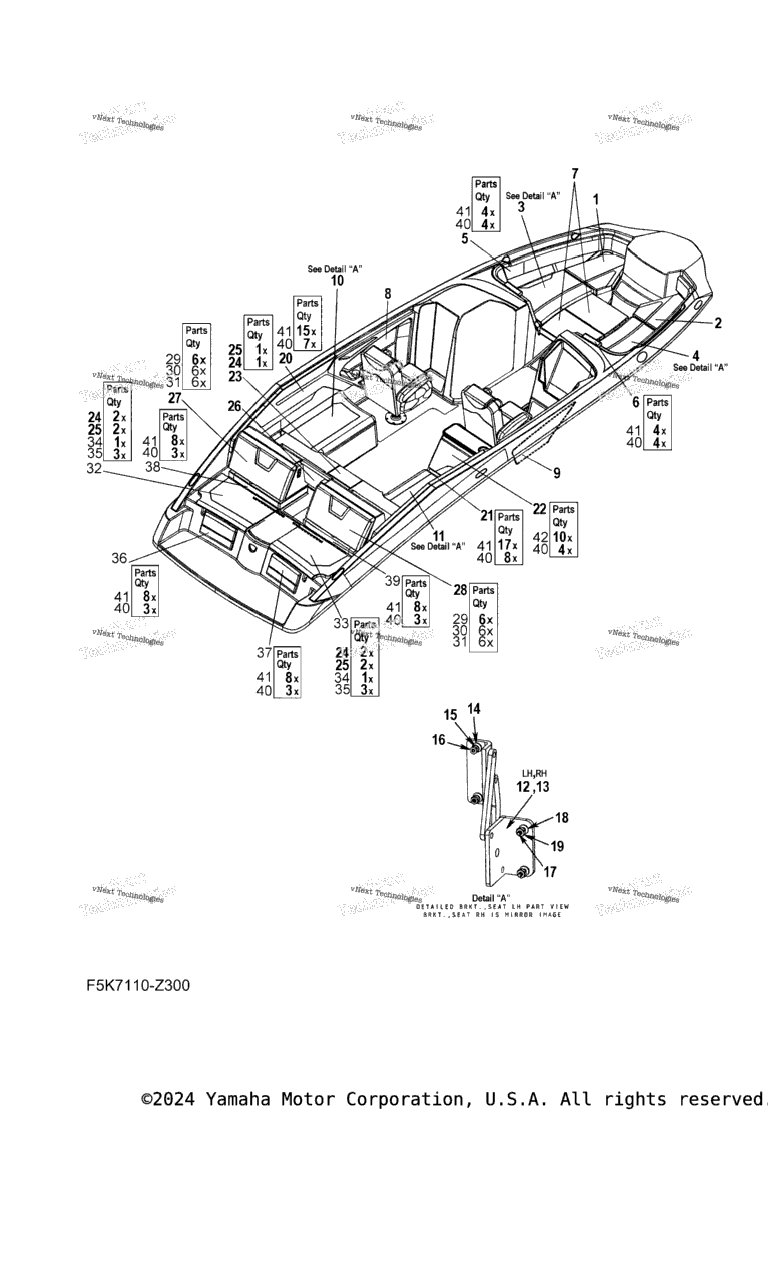

Схема узла: Сиденье для лодок и катеров Yamaha 255XD (BPT1800GA) 2024г.
