Сиденье для лодок и катеров Yamaha SX250 (BXT1800BY) 2023г.
F4Y-U35A5-30-00
Cushion, Fore 5
F4Y-U35A6-30-00
Cushion, Fore 6
F4Y-U35A1-30-00
Cushion, Fore 1
F4Y-U35A2-30-00
Cushion Seat,Front Right
F4Y-U3796-30-00
Back Rest 3
F4Y-U3798-30-00
Back Rest 4
F4Y-U372F-00-00
Cushion 5
F4Y-U371D-30-00
Cushion 1
F4Y-U371E-00-00
Cushion 2
F3F-U3714-21-00
Bracket,Seat
F3F-U3714-31-00
Bracket,Seat
90204-10S00-00
Washer, Spring
90151-10S16-00
Screw, Countersunk
90185-10S00-00
Гайка самоконтрящаяся
F4Y-U3791-30-00
Back Rest 1
F4Y-U3795-00-00
Back Rest 2
F4Y-U3531-00-00
Cushion,Cockpit 1
F4Y-U3532-00-00
Cushion,Cockpit 2
F4Y-U35L2-00-00
Backrest Aft 2
F4Y-U35L1-00-00
Backrest Aft 1
90116-04S80-00
Bolt, Stud
90204-14S00-00
Шайба пружинная

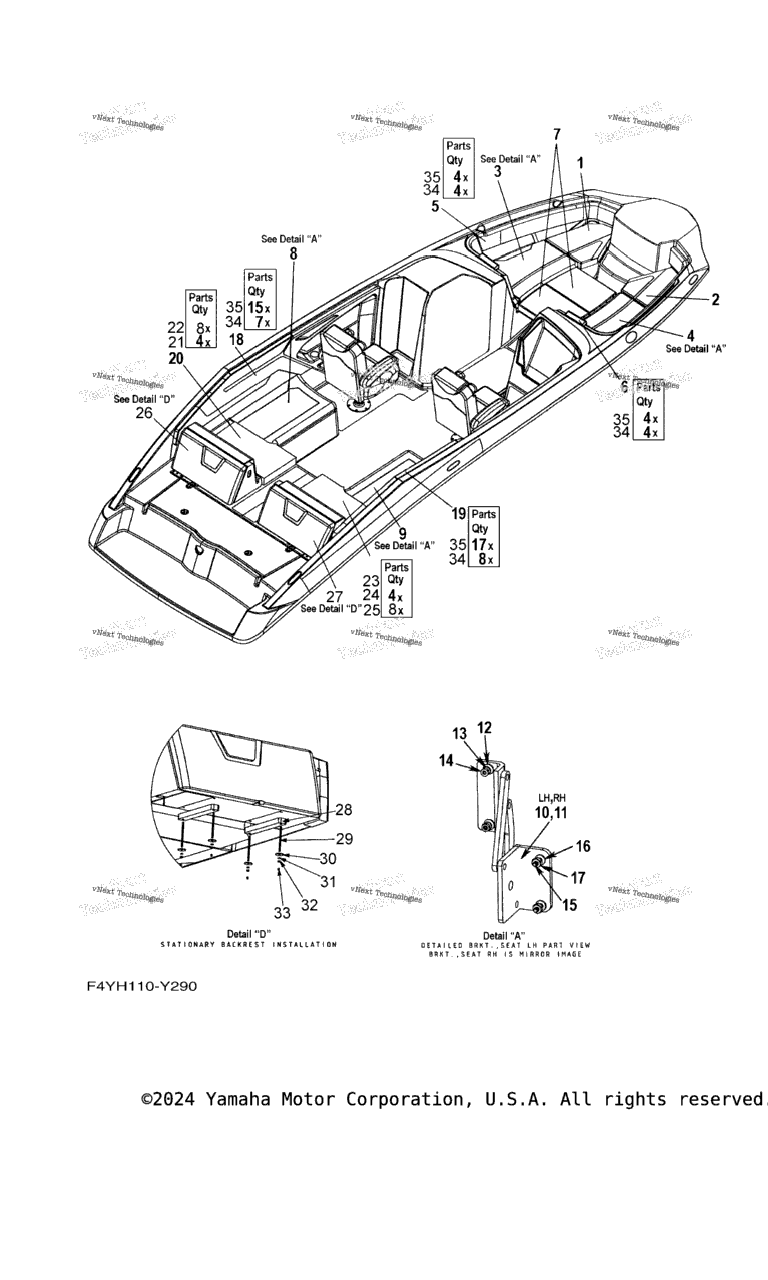

Схема узла: Сиденье для лодок и катеров Yamaha SX250 (BXT1800BY) 2023г.
